Single pneumatic EOAT interface for compact applications

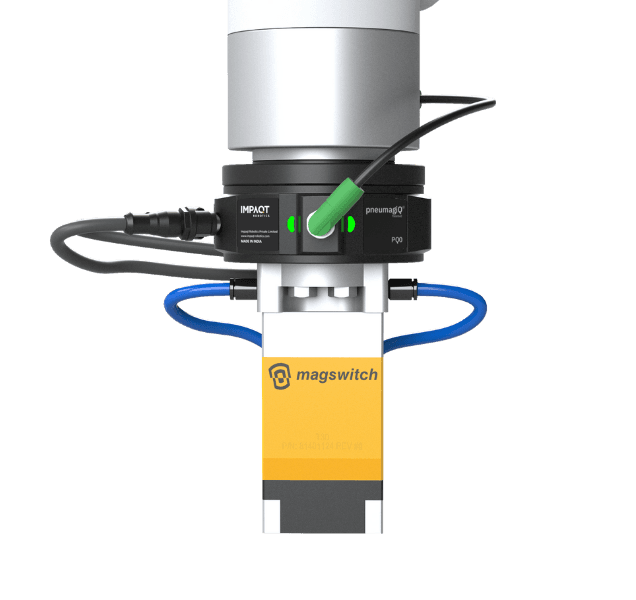

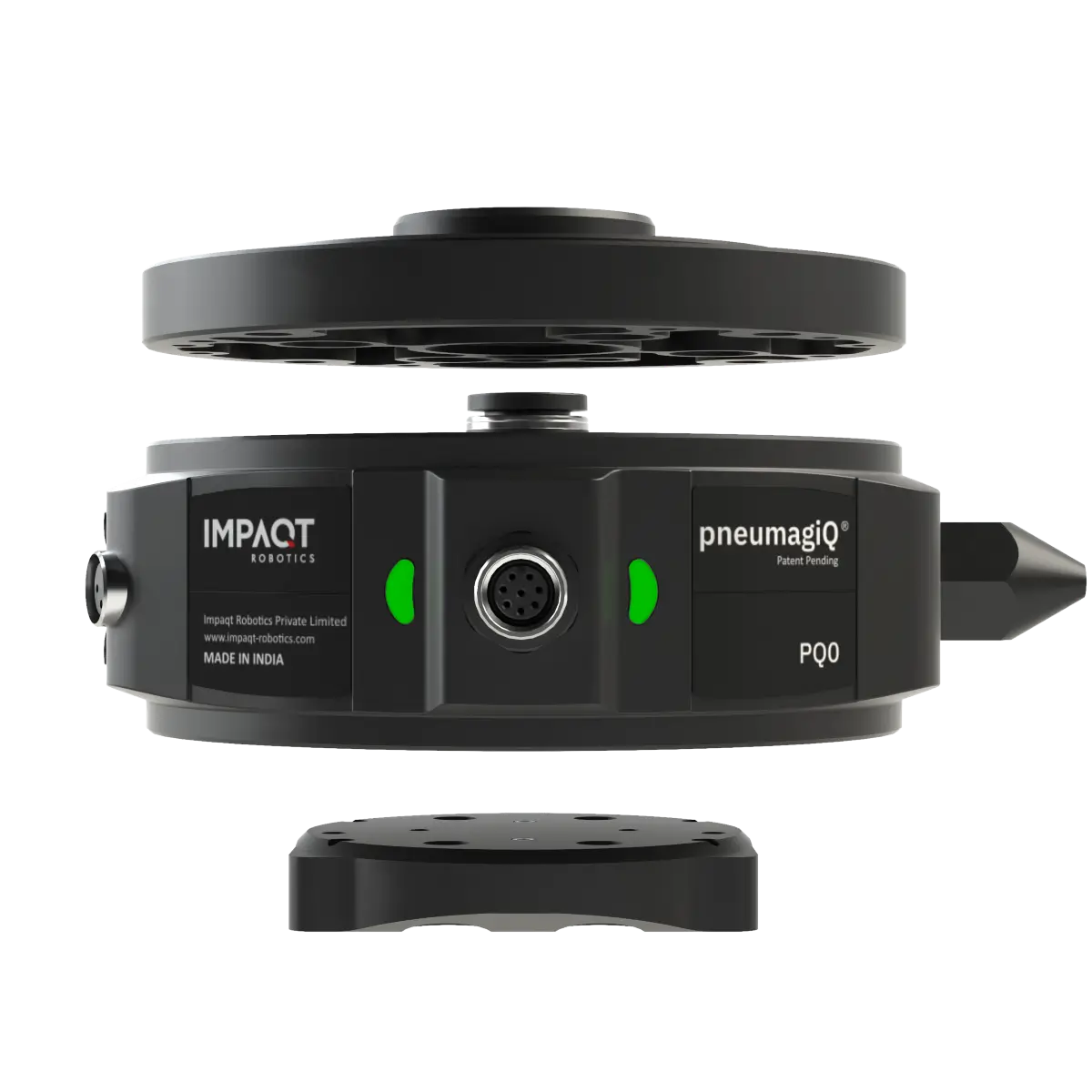

pneumagiQ PQ0 is a universal pneumatic EOAT interface designed for single-tool applications. It provides a compact and direct method of integrating pneumatic tooling where minimal offset and clean installation are required.
410 grams
Maximize robot payload utilization
Number of EOATs
Ideal for material handling
5 kg Payload
Ideal for moderate payload robots
2 Sensor Ports
No more long wires for sensors
Air Blow-Off Port
Clean oil and burr easily
Scroll to view product

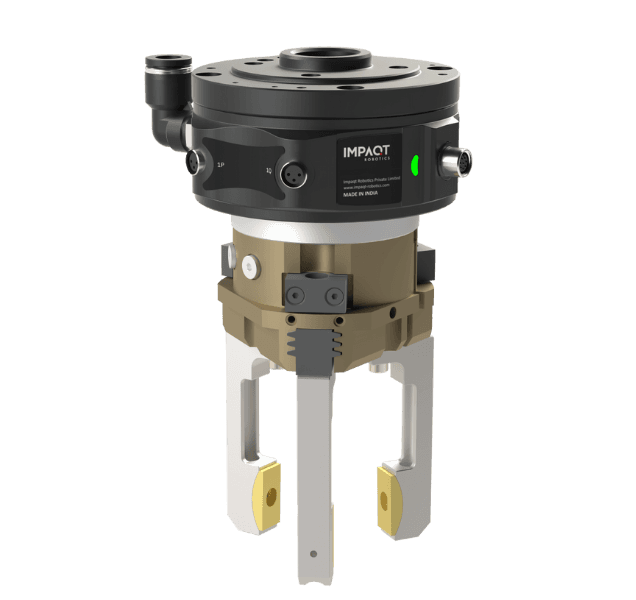

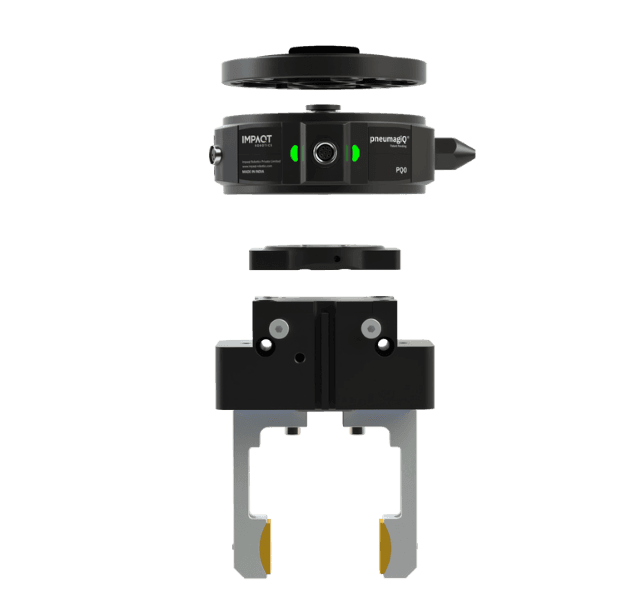

PQ0 is designed as part of the pneumagiQ platform, providing a standardized and brand-agnostic interface for pneumatic EOAT. This allows integrators and end users to mount and operate different pneumatic tools on the same interface, without being locked into a specific EOAT brand or application.
By using a common platform, PQ0 enables pneumatic tooling to be reused, reconfigured, or replaced as application requirements change. This reduces engineering effort, shortens deployment time, and supports efficient adaptation of robotic cells without redesigning the EOAT setup.

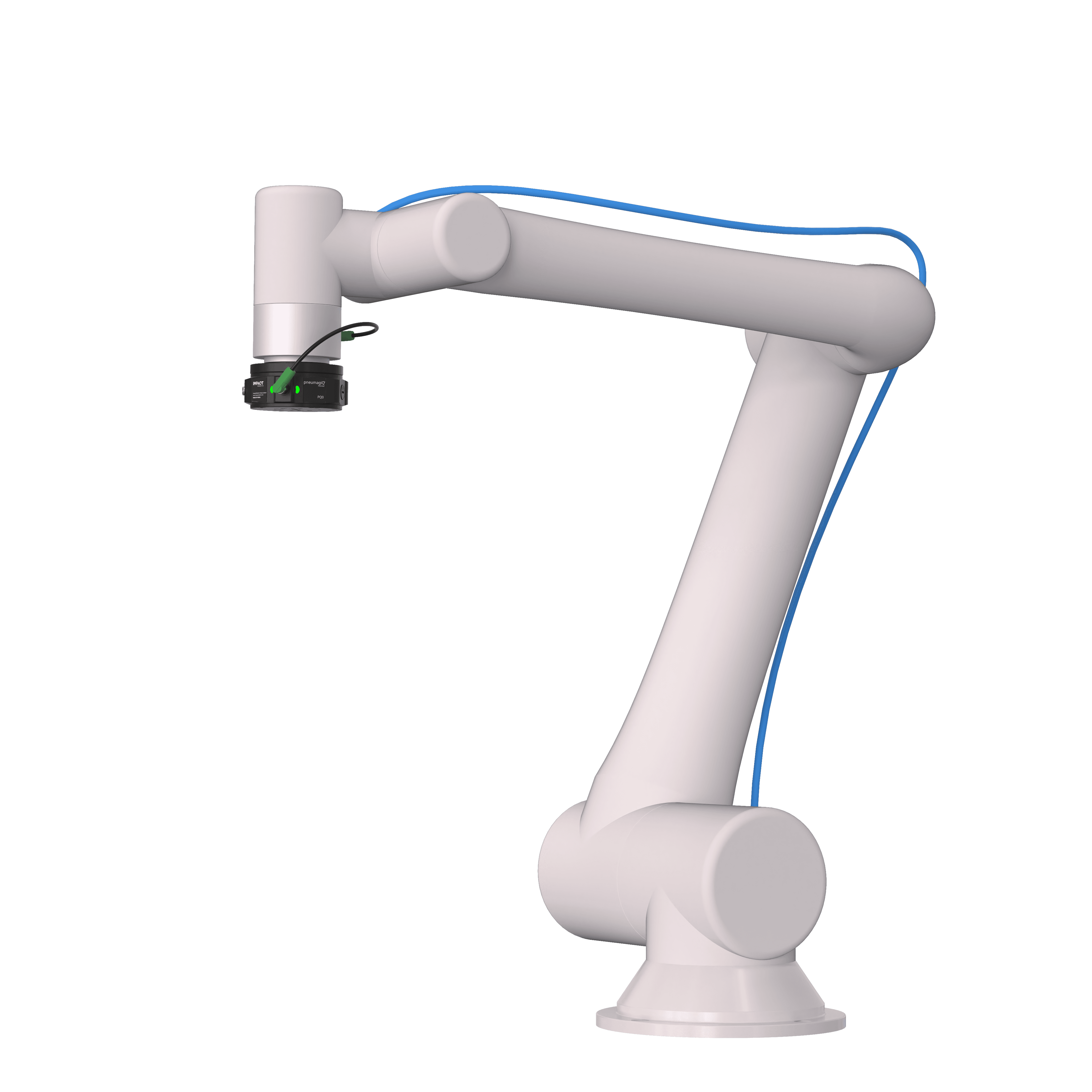

PQ0 is available with dedicated plugins for both Universal Robots and FANUC CRX robots, enabling full Plug & Play integration within each robot environment. This allows users to configure and operate pneumatic tooling directly from the robot interface without additional controllers or complex setup.
For other robots, cobots, gantries, and custom-built machines, PQ0 supports Modbus RTU (RS-485). This widely used industrial communication protocol ensures compatibility across a broad range of automation platforms.
Standard, globally available converters can be used to interface RS-485 with other communication protocols such as TCP/IP or IO-Link when required.
