Lightweight dual pneumatic EOAT interface for machine tending

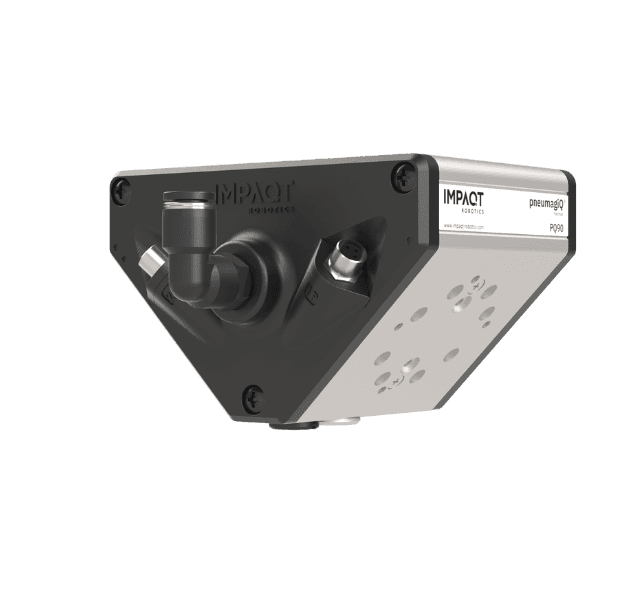

pneumagiQ PQ90 is a universal pneumatic EOAT interface that mounts two pneumatic tools at a 90° offset. Designed for lightweight applications, it supports up to 5 kg while simplifying dual-tool integration in compact automation setups.
5 kg Payload
Ideal for moderate payload robots
580 grams
Maximize robot payload utilization
2 Sensor Ports
No more long wires for sensors

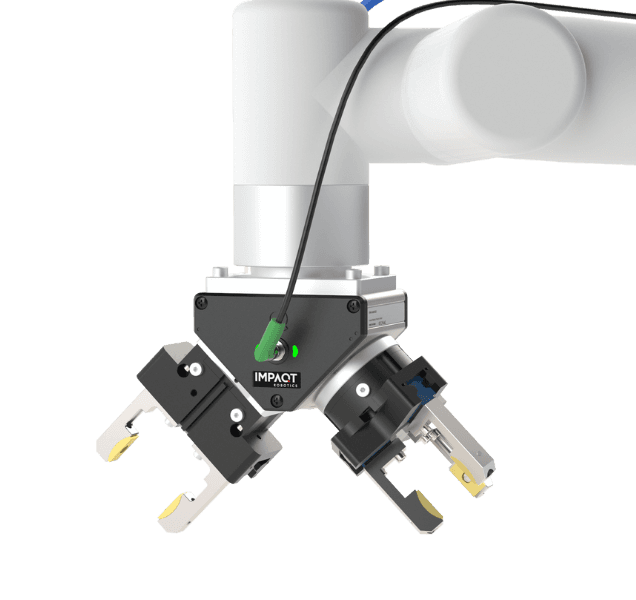

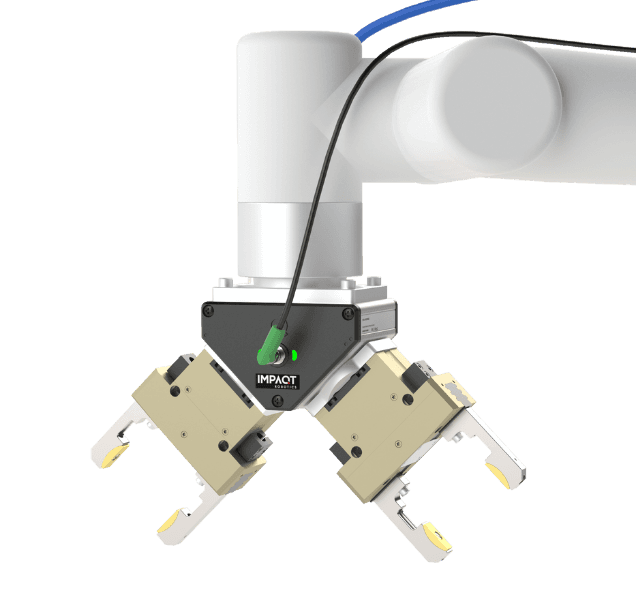

90° EOAT Offset
Ideal for machine tending
Air Blow-Off Port
Clean oil and burr easily
Scroll to view product

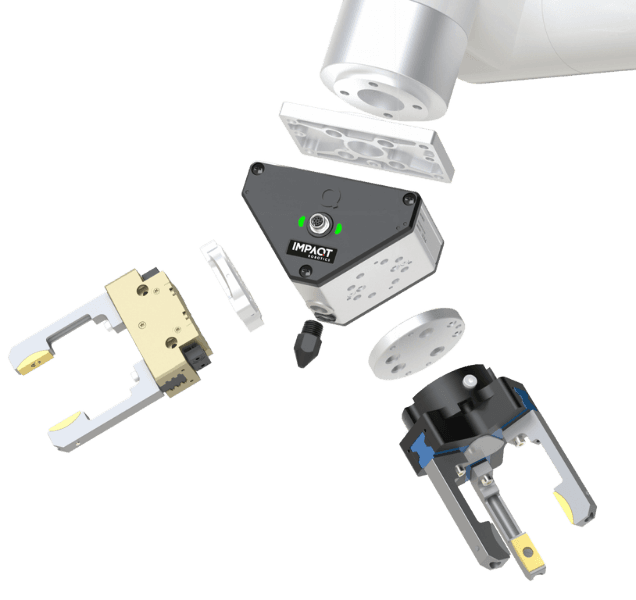

PQ90 is designed as part of the pneumagiQ platform, providing a standardized and brand-agnostic interface for pneumatic EOAT. This allows integrators and end users to mount and operate different pneumatic tools on the same interface, without being locked into a specific EOAT brand or application.
By using a common platform, PQ90 enables pneumatic tooling to be reused, reconfigured, or replaced as application requirements change. This reduces engineering effort, shortens deployment time, and supports efficient adaptation of robotic cells without redesigning the EOAT setup.
PQ90 is available with dedicated plugins for both Universal Robots and FANUC CRX robots, enabling full Plug & Play integration within each robot environment. This allows users to configure and operate pneumatic tooling directly from the robot interface without additional controllers or complex setup.
For other robots, cobots, gantries, and custom-built machines, PQ90 supports Modbus RTU (RS-485). This widely used industrial communication protocol ensures compatibility across a broad range of automation platforms.
Standard, globally available converters can be used to interface RS-485 with other communication protocols such as TCP/IP or IO-Link when required.
pneumagiQ PQ90 is the winner of the Red Dot Award 2023 in the Innovative Product category, one of the most recognized international design awards.
