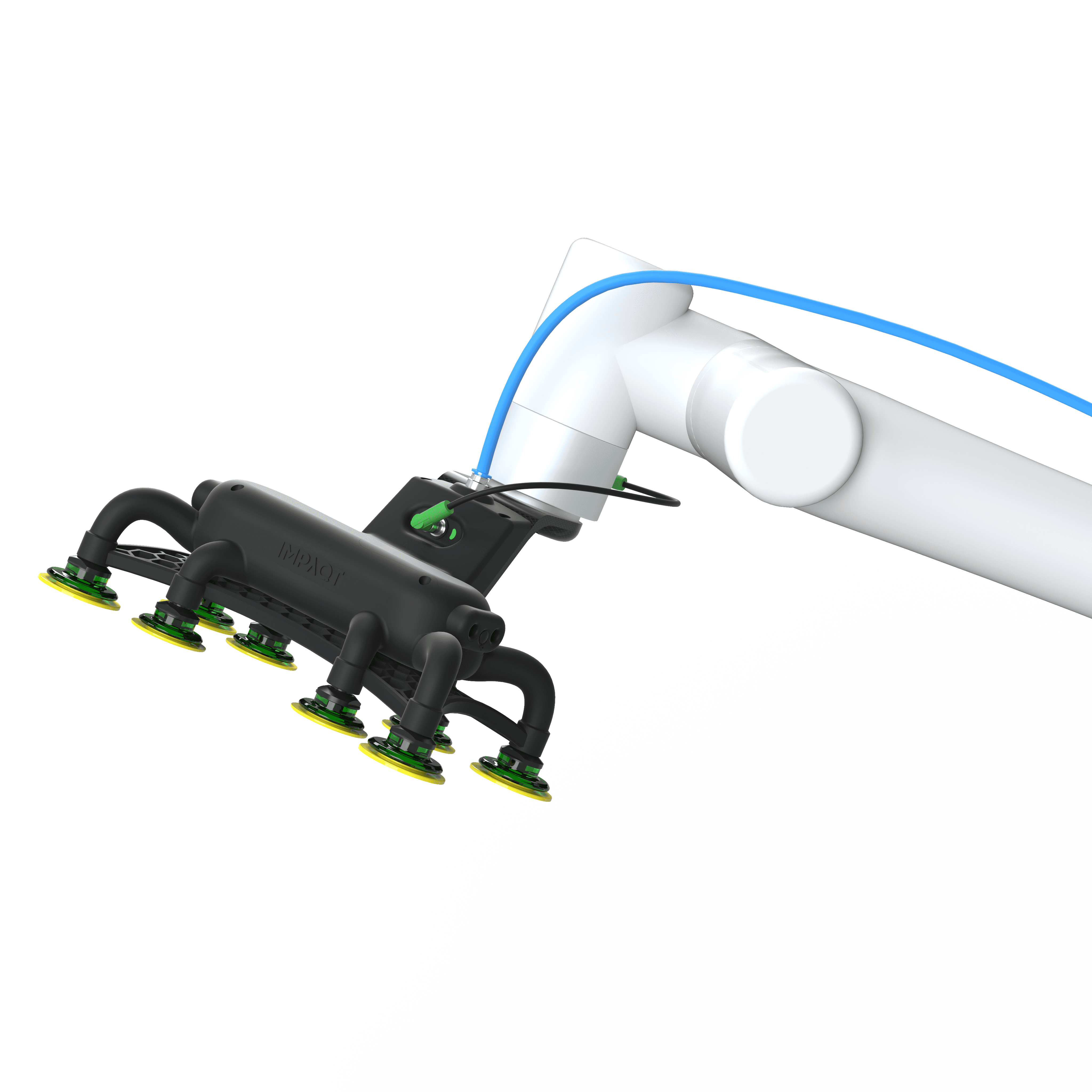

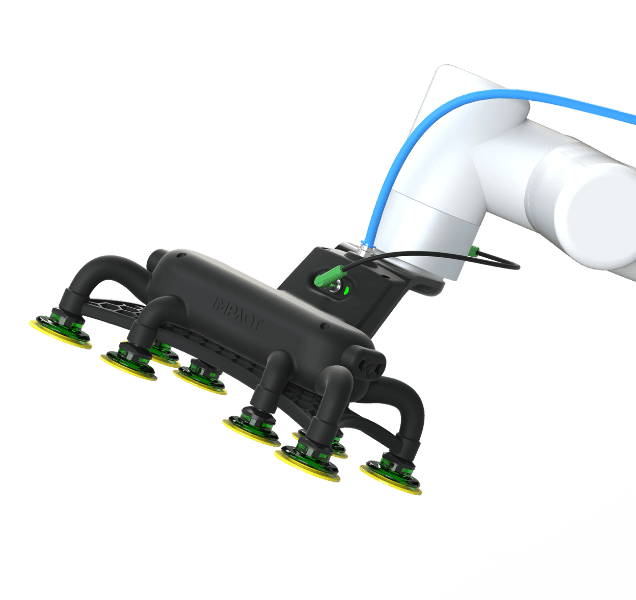

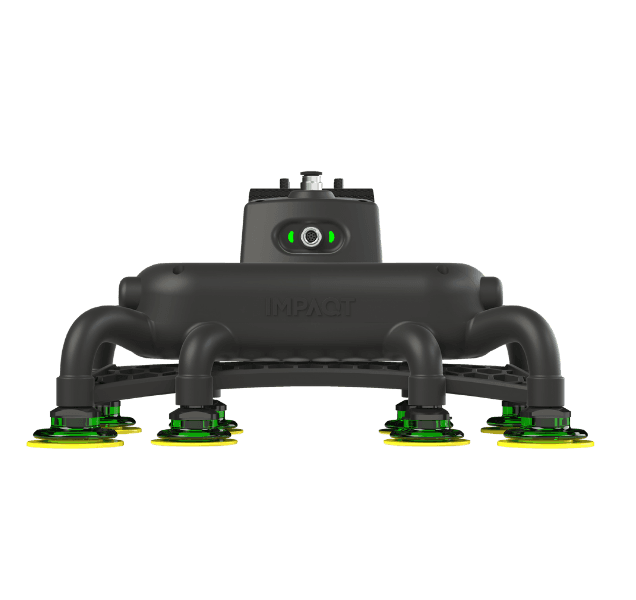

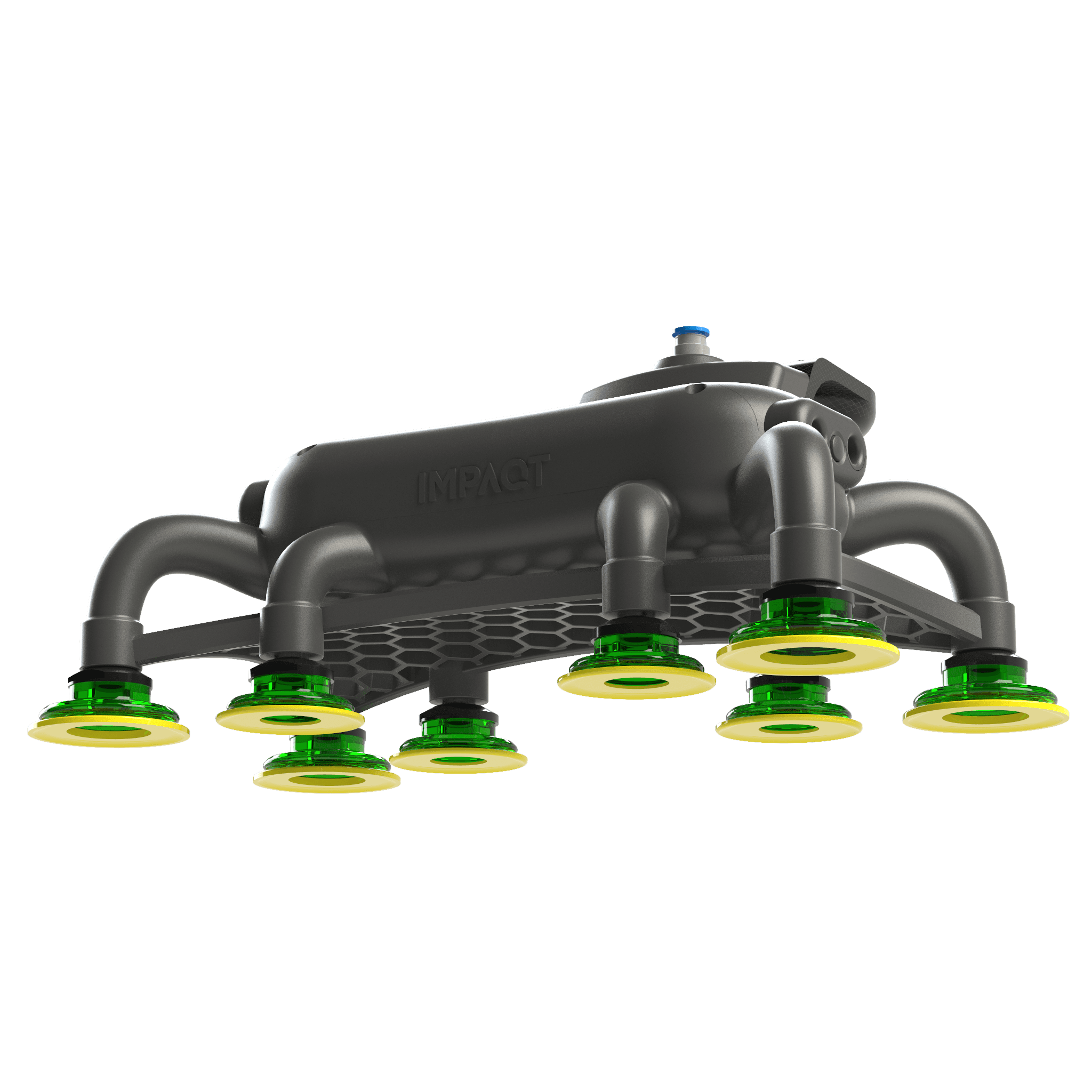

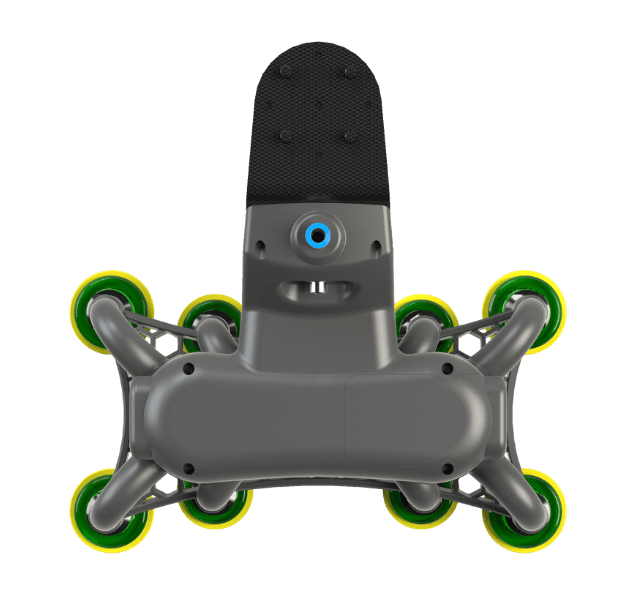

Vacuum gripper with extended reach
vaQgrip VQ10 is a lightweight palletizing vacuum gripper engineered to maximize robot payload efficiency. With an exceptional weight-to-payload ratio, it enables higher throughput and improved working range in robotic palletizing systems.
Key Features
The VQ10 combines low weight with high payload capacity, enabling efficient robotic gripping without overloading the robot arm. Internal vacuum routing reduces external tubing and clutter, supporting clean integration. The dual-channel vacuum design ensures reliable suction for cartons, cases, and flat products in repetitive automation tasks.
170 mm Offset
Extended reach for higher stacks
Dual-Channel Vacuum
Reliable, secure gripping
10 kg Payload
High-payload performance for heavier handling
1000 grams
Low weight maximizes payload
Scroll to view product
The VQ10 allows you to unlock the full potential of your robot’s payload capacity. With minimal self-weight and a 10 kg lifting capability, more of the robot’s rated load is dedicated to the product, not the tooling.
The integrated horizontal offset expands pallet coverage without additional mechanical extensions, reducing system complexity while improving stacking efficiency. The result is higher throughput, cleaner integration, and better overall palletizing performance.
vaQgrip VQ10 integrates seamlessly with Universal Robots and FANUC CRX collaborative robot models, enabling plug and play deployment across leading cobot platforms. This ensures reliable robot compatibility for palletizing and material handling applications.
vaQgrip VQ10 supports the industry standard Modbus RTU (RS-485). We chose one of the most fundamental communication protocols to ensure flexibility across robots, cobots, gantries, and custom-designed machines.
Globally available standard converters from RS-485 can be used to interface with other communication protocols such as TCP/IP, IO-Link, and so on, enabling full control of the vacuum system through the preferred robot or PLC environment.
