Frame 80 Active-with-Control Dock
Dock 80 AC is built for vaQgrip Click setups in the 10 kg payload class. It generates vacuum inside the Dock and connects to the robot through Digital I/O, so vacuum can be controlled directly from the robot without a separate vacuum controller.
Key Features
Handles payloads up to 10 kg.
Generates vacuum inside the Dock.
Connects to the robot through Digital I/O.
Available with 8 mm or 10 mm air input.
10 kg payload
Built for Frame 80 Click setups
Digital I/O
Connects directly to the robot
8 or 10 mm input
Available for different air line sizes
Internal vacuum
Generates vacuum inside the Dock
Connect a Specs JSON file to the File Source property
Active-with-Control Docks generate vacuum inside the Dock and include robot communication. Active Docks generate vacuum inside the Dock, while switching is handled externally. Passive Docks do not generate vacuum; they route vacuum from an external source into the Click system.

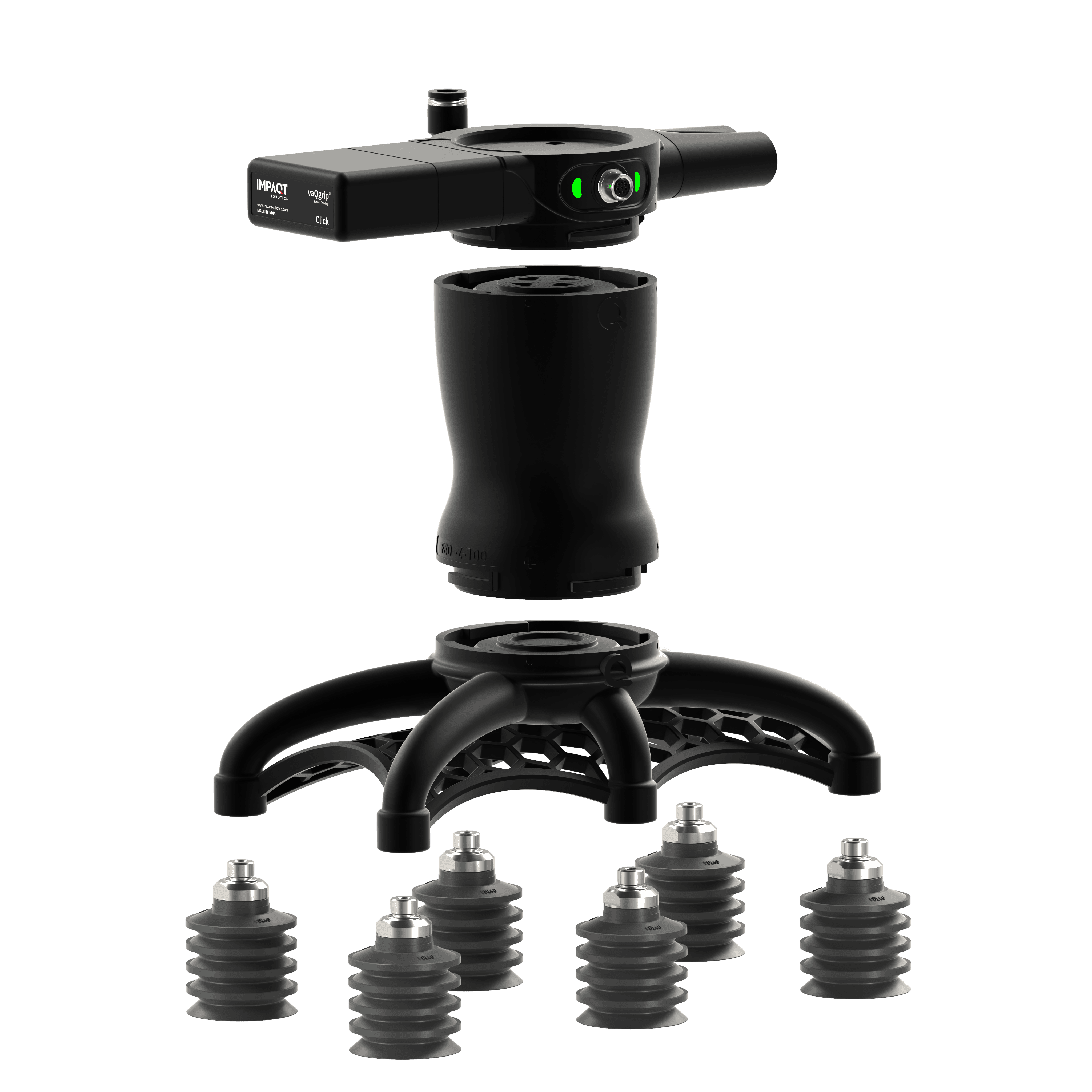

Docks are the starting point of a Click configuration. From the Dock, the layout can connect directly to a Pod or expand through Offsets, Hubs, and Reducers depending on the product, reach, and cup layout required. The vaQlock interface keeps the mechanical connection and vacuum path integrated between Click components.
